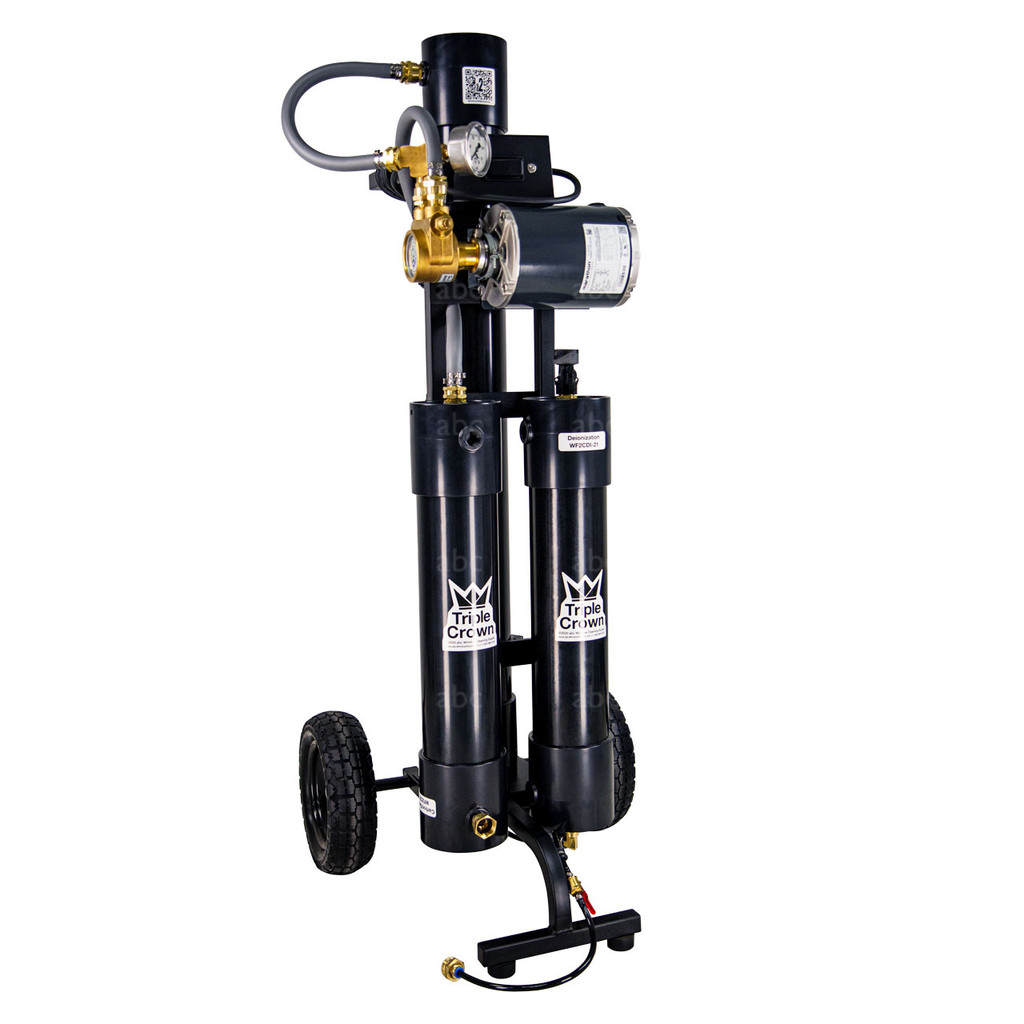

Triple Crown SG2 WaterFed® Pure Water Window Cleaning System

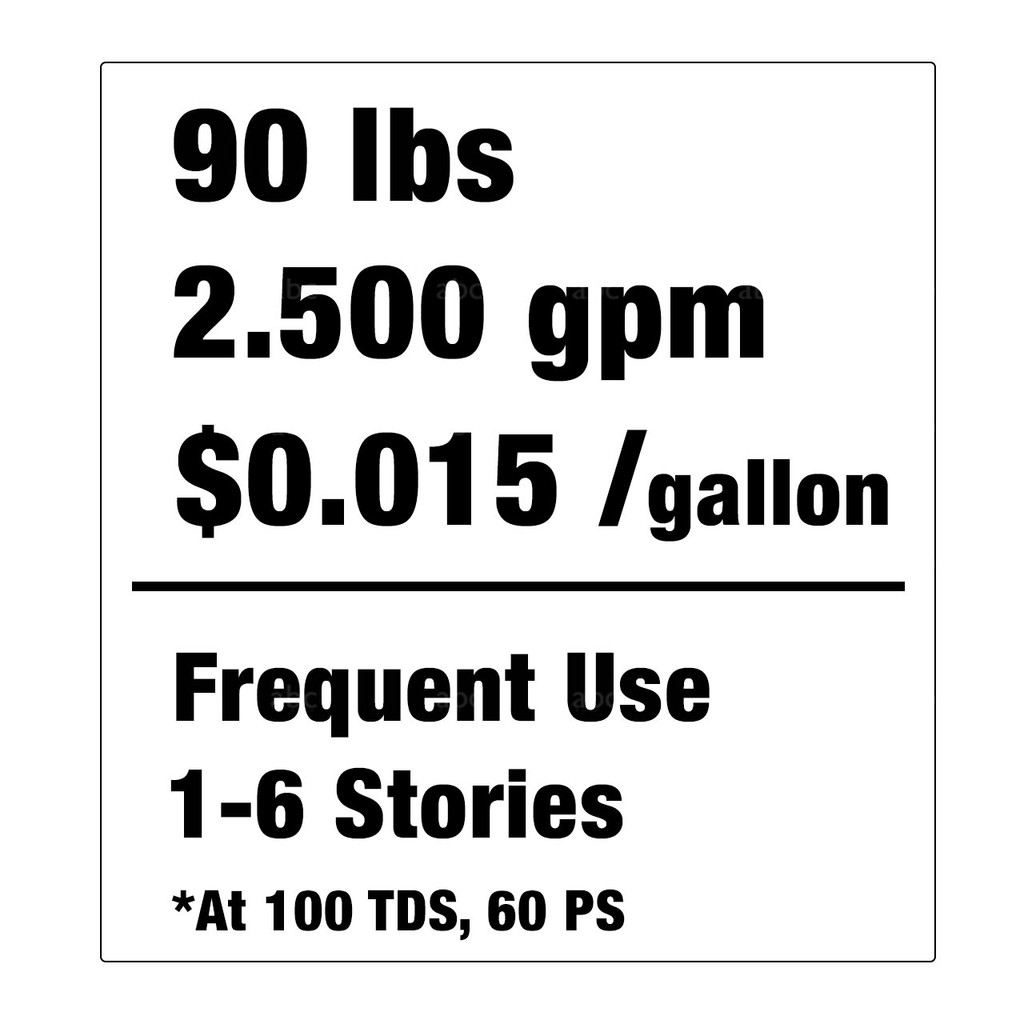

The Triple Crown SG2 WaterFed® Cart provides excellent pure water production and is easily maneuverable in close quarters. This AC powered unit produces 2.500 gallons of pure water per minute.
This RO DI WaterFed® System was designed to operate with a range of source water conditions. The core of this pure water cleaning system's filtration is a replaceable RO membrane. The membrane allows the unit to process higher than average TDS and contributes to a low cost per gallon for pure water production. The DI filter can be bypassed for RO only operation in situations where water quality is high enough to produce water with less than 10 TDS. The RO only operation allows those cleaning solid surfaces to produce water with 40 TDS or less from source water without using a DI filter. The unit also features a rapid drain which allows the user to reduce the overall weight of the unit when lifting this pure water window cleaning system into their vehicle at the end of the day.
This WFP System is equipped with a durable powder coated steel frame with 10-inch run flat tires making it very portable. It is easily transferred into and out of a work van by one person. The larger wheels and wide stance allows it to be easily transported over a variety of landscaping materials. The unit comes equipped with an AC powered pump capable of producing up to 2.500 gallons per minute of pure water, but can be run without a pump with sufficient source water pressure. Perfect for frequent use cleaning 1-6 stories. Triple Crown systems are top quality and sold manufacturer direct, saving you money! abc stocks and supports all parts.
- 50”H x 20”W x 21”D - 90lbs
- Multi-Filter System.
- Durable Steel Frame. AC Powered Pump.
- All Parts Stocked And Supported By abc!
Filters
- WF2CSC-21 -- (1) - 21-inch Carbon/Sediment Filter Cartridge
- WF3CRO-40 -- (1) - 40-inch RO Filter Cartridge
- WF2CDI-21 -- (1) - 21-inch DI Filter Cartridge
Resources
- SG2 Quick Start Guide Video
- SG2 Filter Change Video
- SG2 Guia De Inicio Rapido Video
- SG2 Written Quick Start Guide
- SG2 Written Manual
- -----
- SG2 Quick Start Guide Video (Before 2018)
- SG2 Filter Change Video (Before 2018)
- SG2 Written Quick Start Guide (Before 2018)
- SG2 Quick Start Guide Video (Before 2018)
Replacement Parts
- WF65000-WH -- Wheel
- WF7000-RF -- Replacement Feet
- WF601311 -- Shut-off Valve
- HMTDS-3 -- TDS Meter
- TA-PG -- PSI Pressure Gauge
- TA-NXT-PUMP5 -- Pump
- WF7000-SGM -- 3/4 HP Motor
- TA-RO-200588 -- Replacement Saddle Clamp
- TA-SG-BOTTOMCONNECTOR -- RO-DI Connection Hose
Accessories
- WF7000-OSK -- Outlet Splitter Kit
Included With Purchase
- SG2 System With Filters
- 1 Inline Pressure Gauge
- 16" Connection Hose
- TDS Meter
- Shutoff Valve
- Owner's Manual
General Safety
DANGER:
The motor is non-submersible. Keep the motor dry at all times. Protect the motor from wet weather. Do not allow any part of the cord or receptacle ends to sit in water or in damp conditions. All wiring must be performed by a qualified electrician. The motor must be installed in compliance with all local national codes. Risk of electrical shock! This motor is supplied with a ground conductor and grounding attachment plug. Never remove the grounding prong on the power cord. Removal of grounding prong will make the pump unsafe to operate and increases the risk of fatal electric shock. This motor is supplied with a GFCI attachment. Do not operate this motor without GFCI protection. Do not operate the motor with a damaged power cord. Only pump clear, Non-salt water. Never run the pump dry.
Customer Reviews
My crews favorite RO, but cylinder strength should be better
This is every one of my crews favorite RO to use. The DI/RO filter/membrane provide great tds #'s for a fantastic amount of time if you can keep them in one piece. It can easily run two 65' poles at once with excellent water flow volume. I suspect it could feed three at once. But... if your not super careful about having either the output or overflow completely wide open when starting the pump it can pop/break the cylinders. We've had 2 DI chambers pop, and the RO chamber once. The cylinders are not thick or robust enough to handle the pressure that the pump creates within the system and it splits/pops the chambers open.
Pump for SG2 cart
I originally ordered this cart in November of 2018. It performed very well. We use it frequently running 2 poles over 3 stories. About a year after the pump started making noise. At a year and a half I had to buy a new pump but not the motor. Of course out of warranty. Shortly after that, GFCI plug on the unit stopped working. So now we just plug directly into the motor. One of the wheel bearings is going out as well. I am now two and a half years into this unit and those are the only issues so far. The pump is starring to make noise again, so we will see what happens. But it's a better price than similar systems on the market.
This type of equipment sells itself.
This SG2 really performs whether your are using one or two poles. Very easy to use and load into your truck or van. This type of equipment sells itself. When you start talking about benefits of SG2 WFP system vs using ladders are customers are all ears. Our technicians would rather have a pole in there hand then climbing a ladder and the safety factor is huge.
Very good
Easy to replaced parts plus easy to move around. It's changed my business by doing buildings that have no anchor points.
SG2 water fed system
Just bought one. Work great for the first job I use it on. I'll repost later after I've used it more
Looks awesome when your on the job
Good but parts break easily gfi brackets etc
Overall value long-term
I've used this system more than 5 times, and this is not my first WaterFed system. I found the Manual and Quick Start guide helpful. Using this system is safer for my crew.
It Works and It's Worth The Price
I have been cleaning windows for over 25 years now and up until about 2 years ago I had never used a WaterFed system primarily for 2 reasons, First I didn't have any confidence that they would work and 2nd because of their cost I figured it was cost prohibitive. Well about 2 years ago I happened to enter a sweepstakes with ABC Supply and lo and behold I won an SG2 cart. So I said what the heck I won this thing I might as well give it a try. All I can say is that after 2 years of use I am sold on this item. It works great! The water comes out free of any contaminants and doesn't leave any streaking on the windows. I use it primarily on 2 story plus homes and 2 and 3 story office buildings. This has increased my safety factor since I no longer have to go up on my ladders nearly as often as I used to and because I don't have to move the ladders around my time on each job has decreased. I think having the portable water pump is a must since the water goes through 3 different filtration filters and it really helps with the water pressure to apply to and rinse the windows. So to answer my original 2 reasons for not using the WaterFed system yes it works and it works very well , secondly it is definitely worth the price in regards to safety and increased job performance. I would highly recommend the SG2 WaterFed cart.
SG2 Cart
It is a great system, creating 100% pure de-ionized water at a pressure for any work necessary. I've used the SG2 less than 5 times so far. It is my first WaterFed system. The manuals and videos were very helpful. Other employees have used it also, and it was very easy to teach them how to use it. This system has completely changed my business as we are picking up business we never could have before and accounts that are very lucrative.
